Military Microwave, Plasma,
And Pulsed Power Devices
At Kirtland AFB
From Kevin <>

High Energy Research and Technology Facility (HERTF)
The High Energy Research and Technology Facility (HERTF) at Kirtland Air Force Base, New Mexico, is a premier Phillips Laboratory capability for research, development and transition of advanced weapons technologies.
This $9 million facility provides a unique capability for the development of high-power microwaves, high-energy advanced pulsed power (including explosive devices), and very- high-energy plasmas. It also provides a research environment for exploring a variety of related technologies. The facility's remote location in the Manzano Mountains is coupled with aunique construction, which is designed to withstand blasts and intense radiation from a variety of sources, including high-energy microwaves and x-rays.

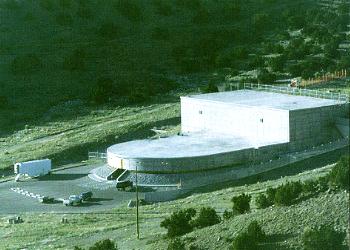

HERTF is located in a canyon in the Manzano Mountains in the southeast portion of Kirtland. The facility has a four-story-high bay laboratory, 80 feet by 150 feet, with concrete roofand walls four feet thick for blast and radiation shielding. The high bay includes two bridge cranes, cable trays, a 12-foot-deep pit for intense radiation source experiments, and access tunnels to an explosive firing areanearthe highbay. Up to 1000 pounds of high explosives can be detonated in this area to produce hundreds of megajoules of electrical energy needed for these advanced experiments. The facility also contains offices and smaller laboratories where advanced weapons technology experiments and demonstrations can be conducted safely and securely.
HERTF was designed to scale high-power microwave and high-energy plasma concepts that were pursued for many years in the Laboratory's basic research and exploratory development efforts. It was difficult to advance these concepts with the limited facilities available before HERTF was completed. With this facility, technologies can be advanced to a weapons level. Also, advanced weapons environments can be created, allowing scientists to assess the potential threat of these weapons to United States military systems.
Although the Laboratory's high-power microwave technology is considerably advanced, HERTF is essential in conducting many of the critical experiments still needed to assess the feasibility of the technology for operational systems.
Compact, high-energy pulsed power is an enabling technology for many advanced weapon concepts and effects simulation devices. HERTF is designed to play a major role in the Phillips Laboratory' s development of "next generation" high-energy pulsed power devices. Research and development includes the generation and conditioning of large amounts of electrical energy needed for advanced weapon technologies.
High-energy plasma work at HERTF allows a dramatic power increase for compact toroid experiments compared to other Phillips Laboratory facilities, such as a 10-megajoule capacitor bank. These high-energy plasmas provide the intense radiation environment needed to simulate threat-level nuclear-weapon effects in space. These plasmas are used to support research on fusion energy, and they permit Laboratory scientists to assess potential space-weapon concepts.
